CommMonitor - How to Monitor Computer Serial Ports?

2026-05-17

CommMonitor How to Monitor Computer Serial Ports?

1. Create or Open a Monitoring Session

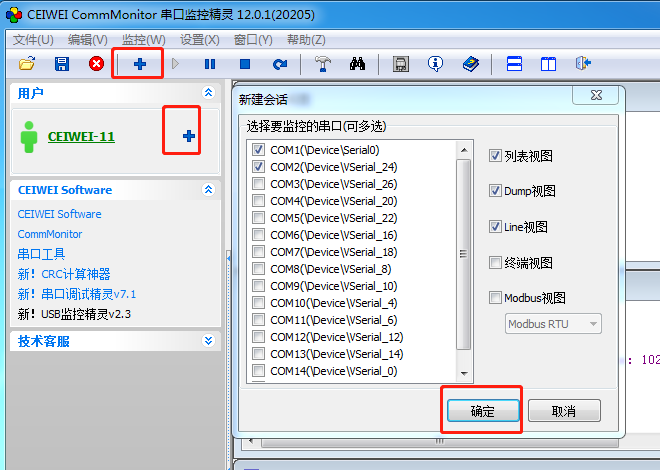

Open CEIWEI CommMonitor software, click the [+] button on the toolbar to add a new monitoring session, then proceed to the New

Monitoring dialog -> select the serial port to monitor -> select the data view, then click [OK].


2. Serial Port Selection for Monitoring - Supports simultaneous monitoring of multiple serial ports, as shown below



3. View Window Descriptions

a) List View: Displays monitored serial port IRP data in a list/column format.

b) Dump View: Displays monitored serial port IRP data in dump format.

c) Line View: Shows detailed information about serial port IRP Function requests.

d) Terminal View: Displays monitored serial port IRP data as text console output strings.

e) Modbus View: Analyzes monitored serial port data using Modbus protocol and displays it in a recognizable protocol format, supporting RTU and ASCII modes.

4. Click the [OK] button to start a new monitoring session.
