CEIWEI ParallelMonitor Serial Monitor v3.1

图片关键词


CEIWEI ParallelMonitor Parallel MonitoringYes forLPT EquipmentProfessional powerful system utility software for port monitoring.CEIWEI  ParallelMonitor Monitor the activity of all parallel ports in the recording and analysis system, does not use parallel ports; Ideal tool to track issues that may arise during application or driver development, parallel device testing and optimization, etc. It also provides filtering, searching, data export and powerful data interception functions, which can intercept and save the data flow and control flow information of the specified port for analysis. View changes in parallel port status, intercept uplink and downlink data, fast processing speed, high interception efficiency, and can16Positional notation10Positional notation8Positional notation2The output data is displayed in binary, and the string can be displayed in different codes to support the output of the device data.Unicode/UTF8/UTF7Encoding and decoding, support WinXP, Win7, Win10 operating system。

 Buy product：https://item.taobao.com/item.htm?id=638643840143


图片关键词


图片关键词



ParallelMonitorKey functionality:

  • Support monitoring parallel port type: standard computer 25-pin/36-pin parallel port;

  • Parallel port data can be monitored and collected in real time;

  • Multiple parallel ports can be monitored simultaneously;

  • Monitor parallel ports that have been opened by other applications;

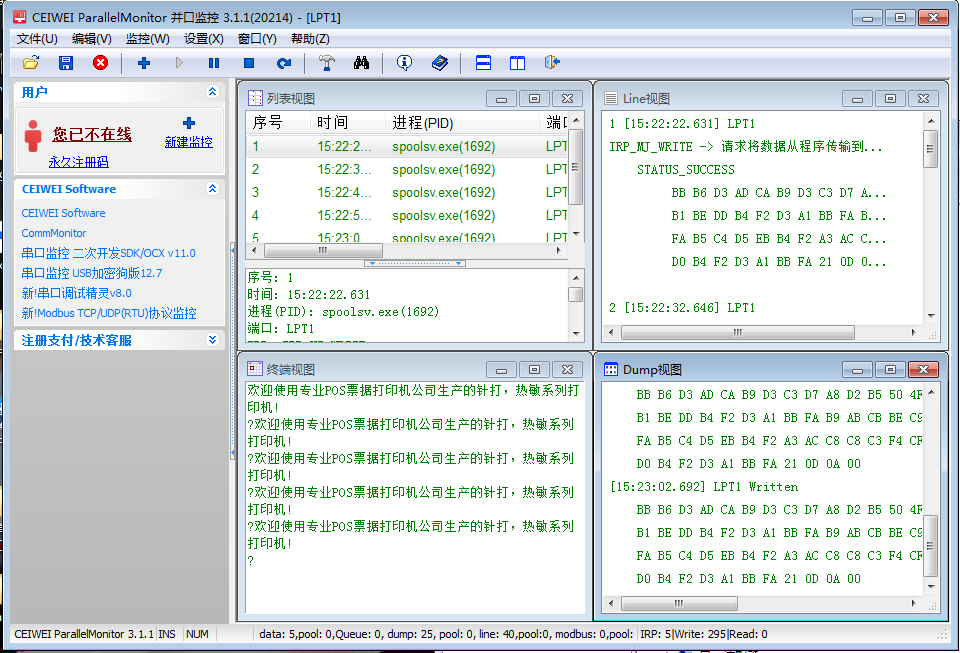

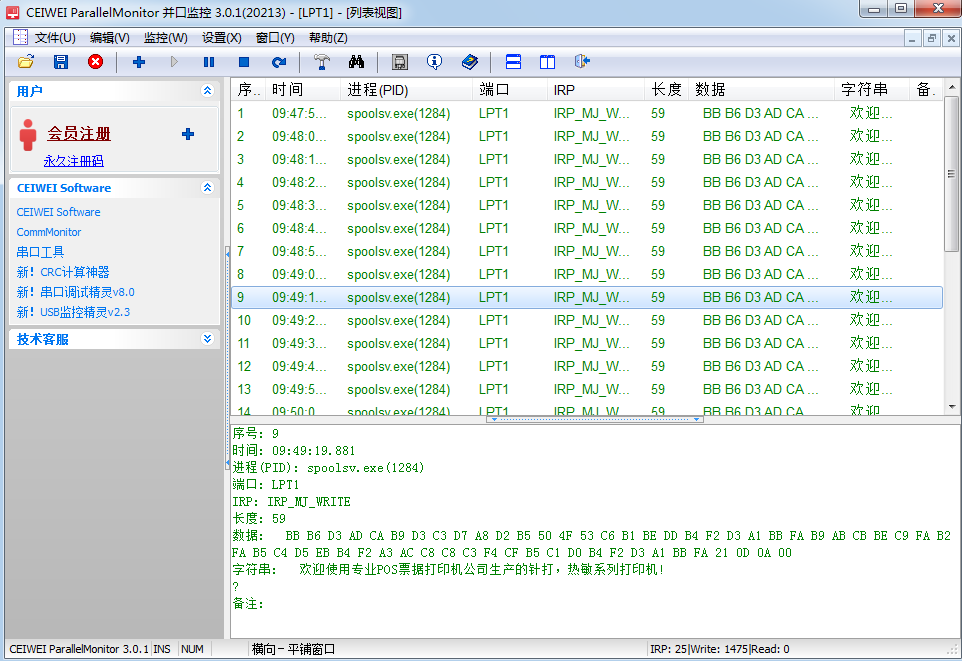

  • Support monitoring view: List view, Line view, Dump view, Terminal view;

  • Support monitoring all Write/Read data streams on parallel ports;

  • Supports monitoring of all parallel port IOCTL control codes and tracking of complete request information and parameters;

  • Support custom monitoring view data record color, time format, byte line break length, byte different number system display output, etc.;

  • Support monitoring session management: save and load all monitoring data, export and redirect to file function;

  • Support for monitoring view data export ASCII text, and support for automatic redirection to files (requires registration of enterprise version);

  • Copy all recorded data to the clipboard (requires registration of enterprise version);

  • Support data linkage display between list view, line view, and dump view;

  • Support for custom IRP/IOCTL filtering tools;

  • Supports monitoring view log data export as HTML, CSV, Ansi/Unicode text documents, and supports automatic redirection to files, which can be divided into storage log files by time range, file size, etc. (enterprise version registration is required).

  • Network users, if there is a network, use the WeChat Mini Program to scan the CommMonitor serial port monitoring sprite QR code, and will automatically log in successfully;

  • Network users, in the absence of a network, use the WeChat Mini Program, scan the login QR code of the CommMonitor serial port monitoring sprite software, and then enter the authorization login code to verify the login.




ParallelMonitorAvailable in:

·         MonitorParallel portEquipment and anyWindows   AppData transfer between communications;

·         MonitorParallel Port Printerand so on all the connections to the computer andLine endMouth equipment;

·         Available toParallel endPort program and hardware development and debugging


ParallelMonitorEnd-user of

·         Software programmers and testers

·         Software Quality Control Engineer

·         Parallel Port Printer Device System Integrator

·         Industrial Controls andSCADADesign Engineer



User Usage Restriction Statement:

This software CEIWEI ParallelMonitor is a parallel port communication tool for software engineers to analyze and debug their own equipment and software with full intellectual property rights, detect the correctness of the parallel port communication protocol between the equipment and the software, and troubleshoot errors in the parallel port communication protocol. All users must not be used to illegally monitor, crack, and reverse analyze the parallel port communication protocol of third-party software (software and equipment that is not their own full intellectual property rights). If there is a violation of all losses and legal liabilities caused by the third-party software, you shall be responsible for it. It is irrelevant to the parallel monitoring of this software CEIWEI ParallelMonitor.


Download:https://www.ceiwei.com/down/CEIWEI_ParallelMonitor_20215.zip
